Milliohm Meter ...¢Ñ»ó¼¼º¸±â |
hit: 1533
|
|
 |
¸ðµ¨¸í : 16502 |
ºê·£µå : Chroma |
|
|
 |
Features |
|
- Basic accuracy: 0.05%
- Pulsed test current output mode is used to reduce thermal EMFs affection on milliohm measurement
- DC test current output mode is used to fasten measurement speed for inductive DUT
- Dry-circuit test current output mode (limited max 20mV) is used to measure such contact resistances
where the maximum open-circuit voltage must be limited to 50mV
- Temperature correction (TC function) regardless of material or temperature
- Usful Temperature Conversion Function for Motor/ Coil Evaluation
- 0.001m¥Ø~1.9999M¥Ø wide measurement range with 4 1/2 digits resolution
- Standard RS232 interface
- Optional GPIB & Handler interface
- Bin-sorting function
- Comparator and Pass/Fail alarming beeper function
- Large LCD display (240 x 64 dot-matrix)
- Friendly user interface |
 |

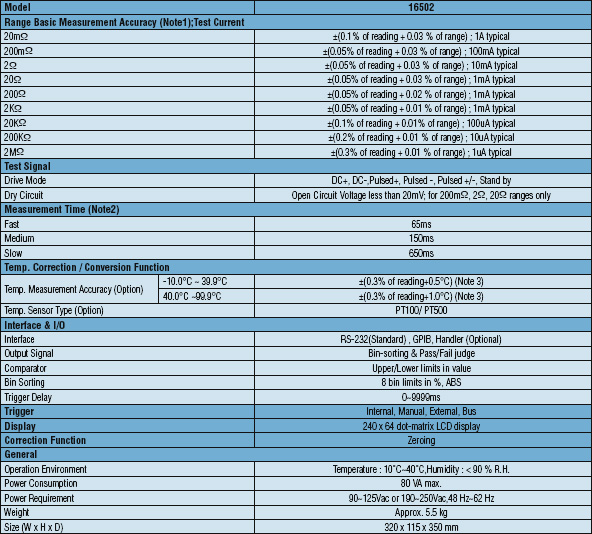

Speciications | |
 |
|
|
|
|
|
|
|
