디지털 스토리지 오실로스코프...☞상세보기 hit: 8217
 모델명 : GDS-300/200 시리즈
 브랜드 : GW Instek





주요사양 및 장점

- 모델명 : GDS-307, GDS-310, GDS-320, GDS-207, GDS-210, GDS-220
- 200/100/70MHz, 2채널, 1GSa/s, 5M 메모리(GDS-300), 1M 메모리(GDS-200)
- 50,000 카운트 디지털 멀티미터 기능

 품목

설명

GDS-320

200MHz, 2채널, 1GSa/s, 5M 메모리 DSO+DMM

GDS-310

100MHz, 2채널, 1GSa/s, 5M 메모리 DSO+DMM

GDS-307

70MHz, 2채널, 1GSa/s, 5M 메모리 DSO+DMM

GDS-220

200MHz, 2채널, 1GSa/s, 1M 메모리 DSO+DMM

GDS-210

100MHz, 2채널, 1GSa/s, 1M 메모리 DSO+DMM

GDS-207

70MHz, 2채널, 1GSa/s, 1M 메모리 DSO+DMM

특 징

- 대역폭 : 200MHz/100MHz/70MHz
- 채널수 : 2
- 실시간 샘플링 레이트 : 1GSa/s
- 레코드 길이 : 5M(GDS-300), 1M(GDS-200)
- 수직 스케일 : 2mV/div~10V/div
- 수평 스케일 : 5ns/div~100s/div
- 디스플레이 : 7인치 TFT LCD(800x480)
- 정전식 터치 패널, 멀티 포인트 제어
- 50,000 카운트 디지털 멀티미터 내장
- 연속 30,000 파형 로깅 및 재생 기능
- 공학 계산기, SMD 저항 코딩, 컬러 코딩 정보, 감쇠 계산
- USB 인터페이스, 120MB 내부 플래시 디스크


 상세설명

Digital oscilloscopes have entered an epoch-making generation. Compact appearance, full touch screen, and abundant functions together make this exquisite oscilloscope a very powerful test and measurement instrument which tremendously facilitate engineers to solve complex challenges. This is the latest definition of the alluring- brand-new-generation oscilloscope defined by GW Instek. That is the reason why she is called the Angel of the Test and Measurement Industry. GDS-200/300 series oscilloscopes are equipped with USB storage function and can be positioned in portrait and landscape display. The recharging-battery design makes the series easy to operate for field operations. The GDS-200/300 series are applicable in laboratories, R&D, large electric system tests, power product tests, motor tests, solar power battery inspection and repair, and maintenance personnel who are always on field assignments. The GDS-200/300 series, with two analog signal input channels, have advanced and standard models which come with 70MHz, 100MHz and 200MHz bandwidth. The maximum sample rate per channel is 1GSa/s and memory depth is 5Mpts. GDS-300 series oscilloscopes are equipped with 50,000 counts DMM, and GDS-200 5,000 counts DMM which can simultaneously measure and monitor A.C. and D.C. voltage and current, and temperature. Trend plot in a long period of time can also be drawn that allows engineers to effectively monitor standard electric parameters while measuring basic circuit signals. Optional 40 MHz dual-channel differential probe can achieve equivalent isolation results for measurement system under strict power and grounding environment. Users can also easily apply the oscilloscope as a very convenient USB storage equipment to store waveform images and raw data. Additionally, the oscilloscope can be connected with smart phones to transmit the recorded data. Engineers are aware of GW Instek oscilloscopes’ thoughtful designs through diversified application software. Advanced DMM function and GO/NOGO template editing facilitate users in conducting advanced diversified measurement functions. Engineering calculator, attenuation calculation analysis, and resistance indication analysis help users apply auxiliary functions that demonstrate the concept of powerful and comprehensive technological integration.

Full Touch Panel Capacitive LCD

GDS-200/300 series oscilloscopes adopt full touch panel capacitive LCD. In the era of smart phone explosion, GW Instek can also usher users into the full touch panel measurement era. With only one finger, users not only can move waveform up and down but also the trigger line position. Two-point touch panel is also applied. Engineers can use two fingers to adjust vertical voltage level and to enlarge or narrow time division scale. The brand new touch panel and swift response renew your measurement concept. Additionally, one finger drag menu selection allows users to follow their intuition to locate required measurement functions, and to save and retrieve diagrams and data anytime anywhere.

Portrait/Landscape Display

GDS-200/300 series oscilloscopes allow portrait and landscape display. Engineers have different requirements under different environments. When field test and measurement is necessary engineers often need portrait display to conduct measurement due to environment limitation and the emphasis of integrated functions. Waveform measurement and DMM can be simultaneously operated. When indoor test and measurement is required engineers often need stable measurements and large screen which is answered by landscape display. 7” full measurement screen can also be applied as a stable desk-top oscilloscope.

Simultaneous utilization of Oscilloscope and DMM

Traditional oscilloscopes can not meet users’ requirements of conducting integrated system circuit measurement. One extra DMM is often required to work with traditional oscilloscopes to handle enormous test requirements. GDS-200/300 series oscilloscopes integrate the functions of oscilloscope and DMM to conduct simultaneous measurements. In the analysis of system circuit waveforms, GDS-200/300 can also use DMM to measure basic voltage and current of the peripheral components that provides users with very powerful test integration.

30,000 Waveform Records Replay Function

GDS-200/300 series oscilloscopes have built-in 30,000 waveform records replay function. With this function, engineers can monitor circuit in a long period of time. When 30,000 waveform records are completed history records can be replayed repeatedly. Any intermittently appeared abnormal waveforms can be identified by this function which provides users with a very powerful search and debugging weapon.

Optional Differential Probe

In many strict test and measurement environments, system power isolation and grounding problem have become one of the key issues. Bad isolation and grounding will have serious impact on circuit system safety. Optional differential probe of GDS-200/300 series oscilloscopes can achieve equivalent isolation results for measurement system and there is no grounding problem. Under today’s economic constraints, using differential probe to achieve isolation result is one of the best choices.

Briefing Material Compilation

Engineers or students often compile briefing material for work or class requirements. The completeness and convenience of briefing often determine users’ performance. GDS-200/300 series oscilloscopes provide very strong briefing material compilation function. Before compiling briefing material, users can select different test and background conditions such as date, time and cursor. In addition, measurement parameters can also be determined based upon different requirements. This customer-made function not only shows the complete waveforms but also provides peripheral parameters to become the key communication bridge for work and class requirements.

GO/NOGO Template Editing

Many component or system manufacturers require GO and NOGO product analysis for quality control or production. GDS-200/300 series oscilloscopes have the same GO/NOGO function as that of GW Instek other oscilloscopes. This function establishes corresponding waveform templates based on waveforms measured to conduct GO or NOGO results calculation. Additionally, GDS-200/300 have template editing function. Users not only can edit template freely according to test or environment conditions but also set templates with different ceiling and floor boundaries, making GO/NOGO function more diversified and user-friendly.

Tools Electrical Engineers Often Applied

GDS-200/300 series oscilloscopes have built-in diversified application software to provide users with very thoughtful auxiliary tools. In the tedious circuit design process, engineering calculator software provides mathematical calculation functions from basic to advanced allowing engineers to thoroughly understand circuit response and parameter value. Resistance calculation software not only provides accurate resistance value for different surface embedded resistance codes but also color coding resistance value enquiry function. It is a very powerful auxiliary tool for users from students to senior electrical engineers.

Image Storage and Preview Function

GDS-200/300 series oscilloscopes can record screen images and preview images. In many complex test and measurement environments, when engineers can not observe images from his or her computer immediately after images were stored the image preview function allows users to make sure file is correct right away. Pre-observation operation is also very convenient to users.

Used as USB Component

Once engineers finished waveform measurement and report compilation, GDS-200/300 series oscilloscopes can be used as USB storage component to retrieve and store files. Briefing speaking, users can use USB connecting cable to connect GDS 200/300 with the PC or handheld device to retrieve any required files for follow-up actions. Today, smart phone is ubiquitous, the screenshots and measurement results of GDS-300/200 can be transmitted via smart phone that saves a lot of troubles.

Temperature Measurement and Logging Function

GDS-200/300 series oscilloscopes’ built-in temperature measurement and logging function allows users to conduct systematic temperature measurement and logging for electric components and electric systems. This function can collocate with different temperature measurement probes. B,E,J,K,N,R,S,T thermal coupling measurement probes are also supported to conduct Celsius and Fahrenheit scaled temperature measurement. Users can also use trend plot editing to conduct temperature monitoring in a long period of time. It is a simple and convenient measurement tool for quality assurance and test departments.

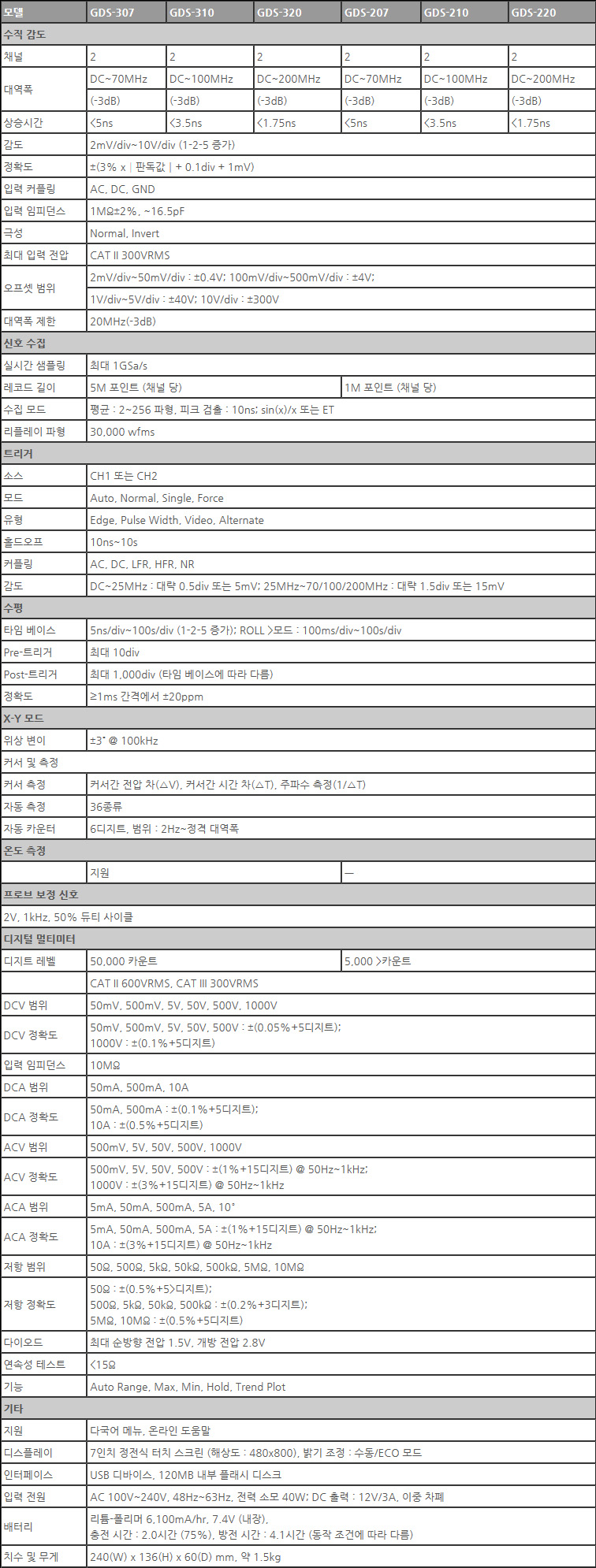

상세사양


악세사리

GTP-100A-4 : 100MHz(10:1/1:1), GDS-307/207, GDS-310/210
GTP-200A-4 : 200MHz(10:1/1:1), GDS-320/220
GSC-001 : 소프트 프로텍트 백
GSC-010 : 소프트 캐리
GAP-001 : 어댑터
GWS-001 : 손목 끈


옵션 악세사리

GDP-040D : 40MHz 듀얼 채널 차동 프로브, CAT II 600V




List
